[知乎回答] poll/epoll函数中的各种event分别应该在什么时候监听并处理呢?

2021-11-13

知乎问题

POLLIN,POLLOUT,POLLERR这三个是比较显而易见的,其余的诸如POLLHUP,POLLNVAL,POLLPRI这些就比较让人摸不着头脑了,这些poll/epoll中的event应该在什么时候需要监听并处理他们呢?


1. 文档

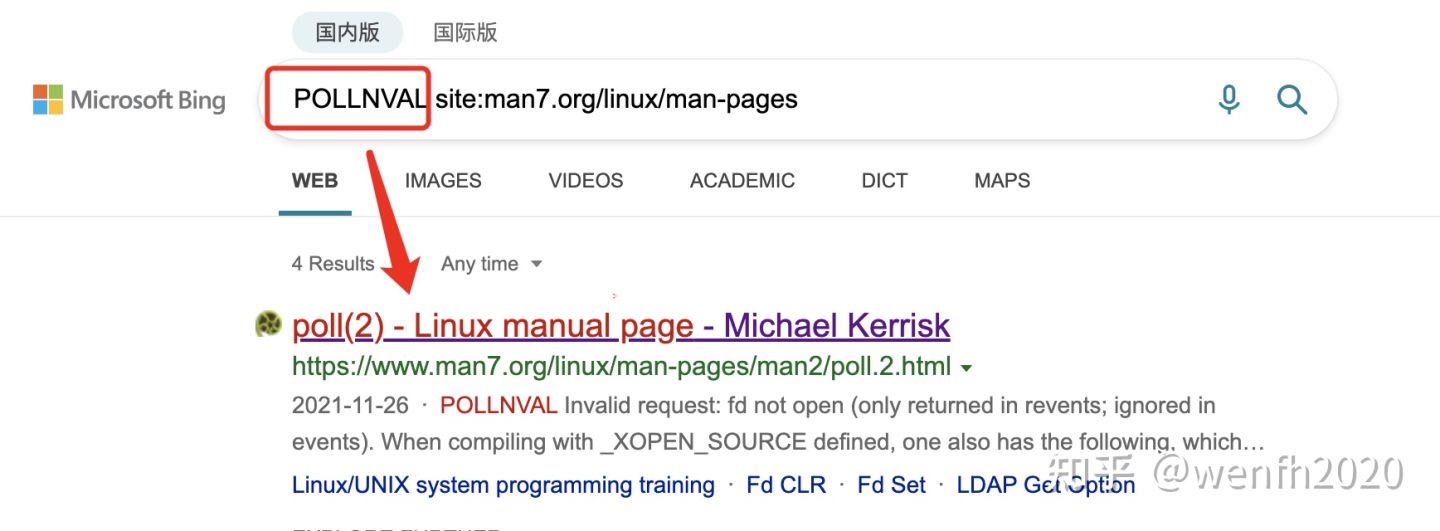

bing.com 搜索事件 POLLNVAL,关键字:POLLNVAL site:man7.org/linux/man-pages,点击第一条记录,有比较详细的文档。

  • 搜索方式,其它的事件信息也可以进行类似搜索。

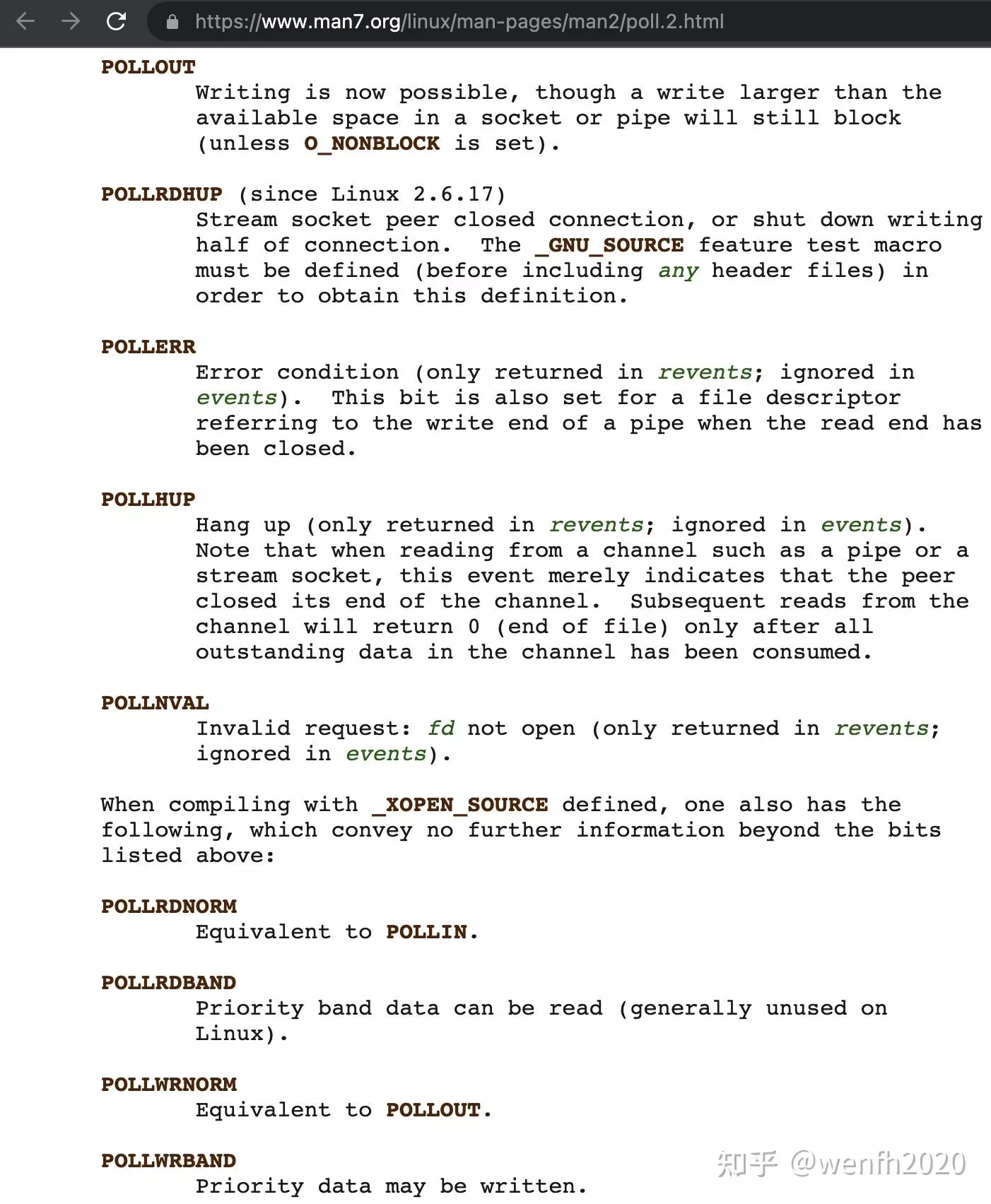

  • 事件文档。

2. 内核源码

事件触发场景。下面是一个 tcp socket 的 epoll 事件检测函数(github),可以看看这些事件是在什么场景下返回的,详细请参考 linux 内核的源码。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
/*
 * Wait for a TCP event.
 *
 * Note that we don't need to lock the socket, as the upper poll layers
 * take care of normal races (between the test and the event) and we don't
 * go look at any of the socket buffers directly.
 */
__poll_t tcp_poll(struct file *file, struct socket *sock, poll_table *wait) {
    __poll_t mask;
    struct sock *sk = sock->sk;
    const struct tcp_sock *tp = tcp_sk(sk);
    int state;

    sock_poll_wait(file, sock, wait);

    state = inet_sk_state_load(sk);
    if (state == TCP_LISTEN)
        return inet_csk_listen_poll(sk);

    /* Socket is not locked. We are protected from async events
     * by poll logic and correct handling of state changes
     * made by other threads is impossible in any case.
     */

    mask = 0;

    /*
     * EPOLLHUP is certainly not done right. But poll() doesn't
     * have a notion of HUP in just one direction, and for a
     * socket the read side is more interesting.
     *
     * Some poll() documentation says that EPOLLHUP is incompatible
     * with the EPOLLOUT/POLLWR flags, so somebody should check this
     * all. But careful, it tends to be safer to return too many
     * bits than too few, and you can easily break real applications
     * if you don't tell them that something has hung up!
     *
     * Check-me.
     *
     * Check number 1. EPOLLHUP is _UNMASKABLE_ event (see UNIX98 and
     * our fs/select.c). It means that after we received EOF,
     * poll always returns immediately, making impossible poll() on write()
     * in state CLOSE_WAIT. One solution is evident --- to set EPOLLHUP
     * if and only if shutdown has been made in both directions.
     * Actually, it is interesting to look how Solaris and DUX
     * solve this dilemma. I would prefer, if EPOLLHUP were maskable,
     * then we could set it on SND_SHUTDOWN. BTW examples given
     * in Stevens' books assume exactly this behaviour, it explains
     * why EPOLLHUP is incompatible with EPOLLOUT.    --ANK
     *
     * NOTE. Check for TCP_CLOSE is added. The goal is to prevent
     * blocking on fresh not-connected or disconnected socket. --ANK
     */
    if (sk->sk_shutdown == SHUTDOWN_MASK || state == TCP_CLOSE)
        mask |= EPOLLHUP;
    if (sk->sk_shutdown & RCV_SHUTDOWN)
        mask |= EPOLLIN | EPOLLRDNORM | EPOLLRDHUP;

    /* Connected or passive Fast Open socket? */
    if (state != TCP_SYN_SENT &&
        (state != TCP_SYN_RECV || tp->fastopen_rsk)) {
        int target = sock_rcvlowat(sk, 0, INT_MAX);

        if (tp->urg_seq == tp->copied_seq &&
            !sock_flag(sk, SOCK_URGINLINE) &&
            tp->urg_data)
            target++;

        if (tcp_stream_is_readable(tp, target, sk))
            mask |= EPOLLIN | EPOLLRDNORM;

        if (!(sk->sk_shutdown & SEND_SHUTDOWN)) {
            if (sk_stream_is_writeable(sk)) {
                mask |= EPOLLOUT | EPOLLWRNORM;
            } else {  /* send SIGIO later */
                sk_set_bit(SOCKWQ_ASYNC_NOSPACE, sk);
                set_bit(SOCK_NOSPACE, &sk->sk_socket->flags);

                /* Race breaker. If space is freed after
                 * wspace test but before the flags are set,
                 * IO signal will be lost. Memory barrier
                 * pairs with the input side.
                 */
                smp_mb__after_atomic();
                if (sk_stream_is_writeable(sk))
                    mask |= EPOLLOUT | EPOLLWRNORM;
            }
        } else
            mask |= EPOLLOUT | EPOLLWRNORM;

        if (tp->urg_data & TCP_URG_VALID)
            mask |= EPOLLPRI;
    } else if (state == TCP_SYN_SENT && inet_sk(sk)->defer_connect) {
        /* Active TCP fastopen socket with defer_connect
         * Return EPOLLOUT so application can call write()
         * in order for kernel to generate SYN+data
         */
        mask |= EPOLLOUT | EPOLLWRNORM;
    }
    /* This barrier is coupled with smp_wmb() in tcp_reset() */
    smp_rmb();
    if (sk->sk_err || !skb_queue_empty(&sk->sk_error_queue))
        mask |= EPOLLERR;

    return mask;
}
EXPORT_SYMBOL(tcp_poll);

/*
 * LISTEN is a special case for poll..
 */
static inline __poll_t inet_csk_listen_poll(const struct sock *sk)
{
    return !reqsk_queue_empty(&inet_csk(sk)->icsk_accept_queue) ?
            (EPOLLIN | EPOLLRDNORM) : 0;
}
